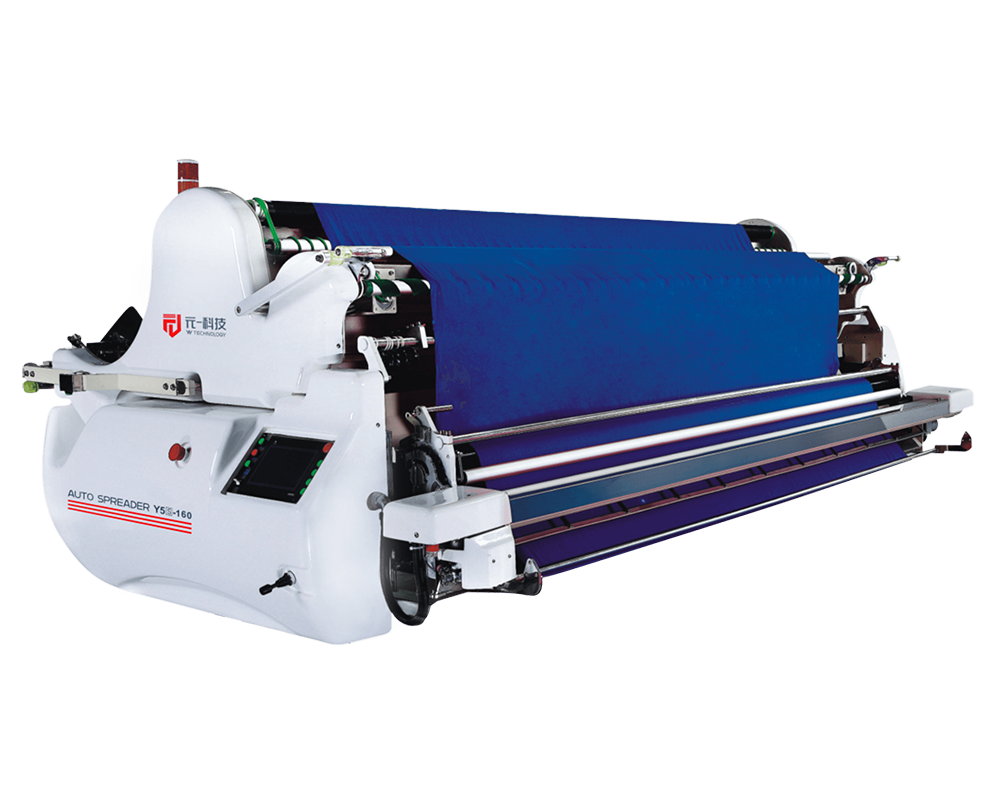

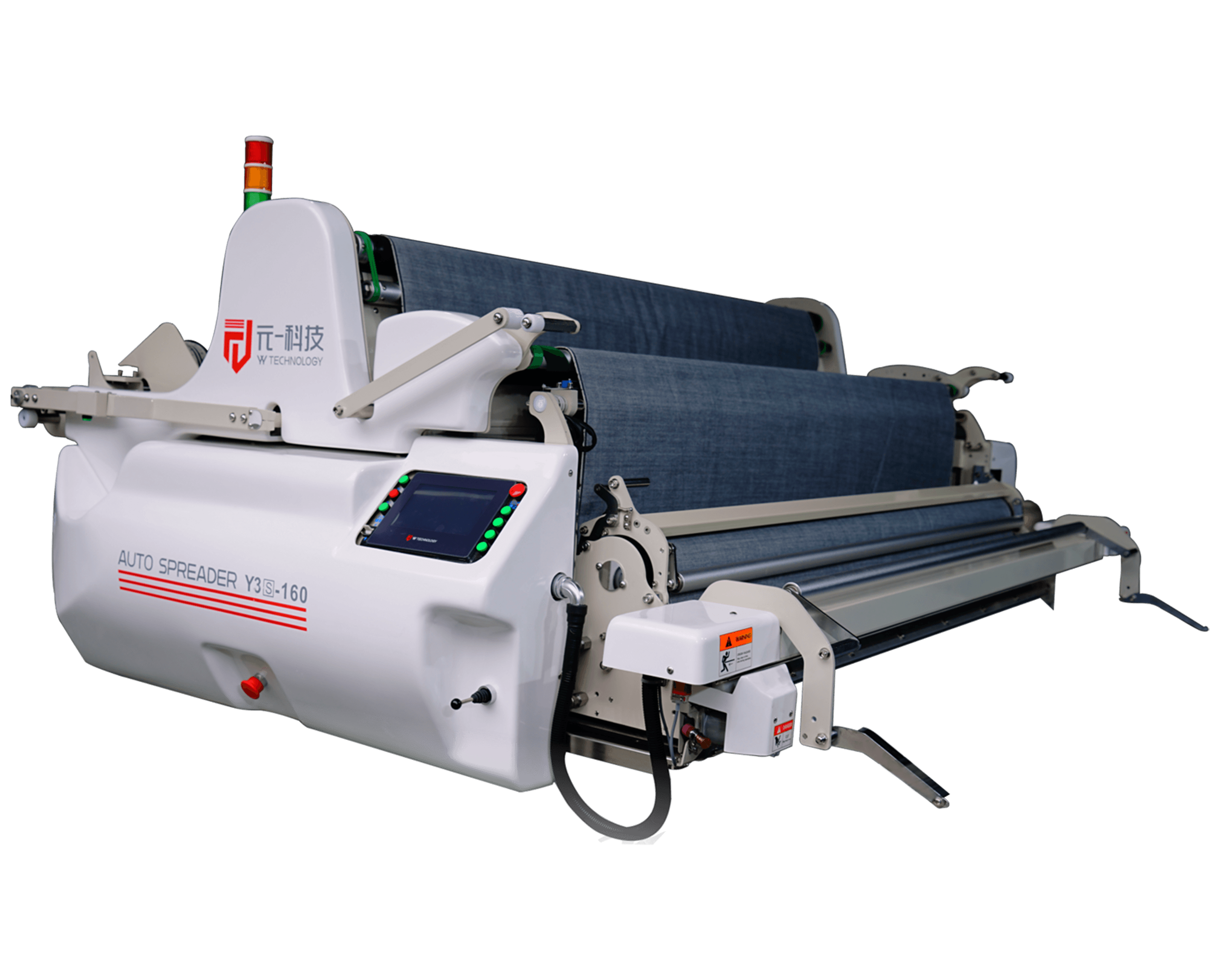

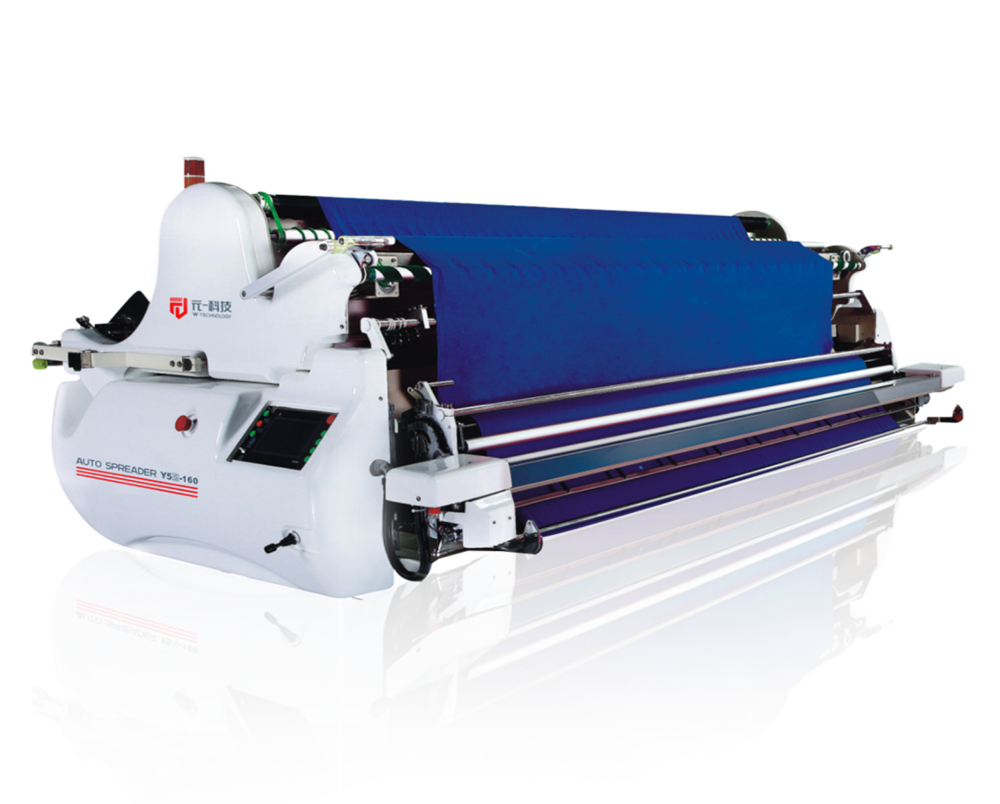

> Auto spreading machine Y5S（T-sirt,Underwear,Kids wear,Sportswear)
Suitable for knitting & woven fabrics. Standard device, spreading roll fabric, automatically adjusting the edge curling and elastic tension.
Icon-style new operation interface, mobile phone level touch feel, simple and straight forward operation instructions, easy to get started.
Perfectly solve the edge curling problem of knitting and achieve tension releasing.
Based on the combination of high-end chips and high-quality hardware, make the edge to edge precision controlled within 0.5cm.
The machine returns back to original position once fabric runs empty without manual intervention.

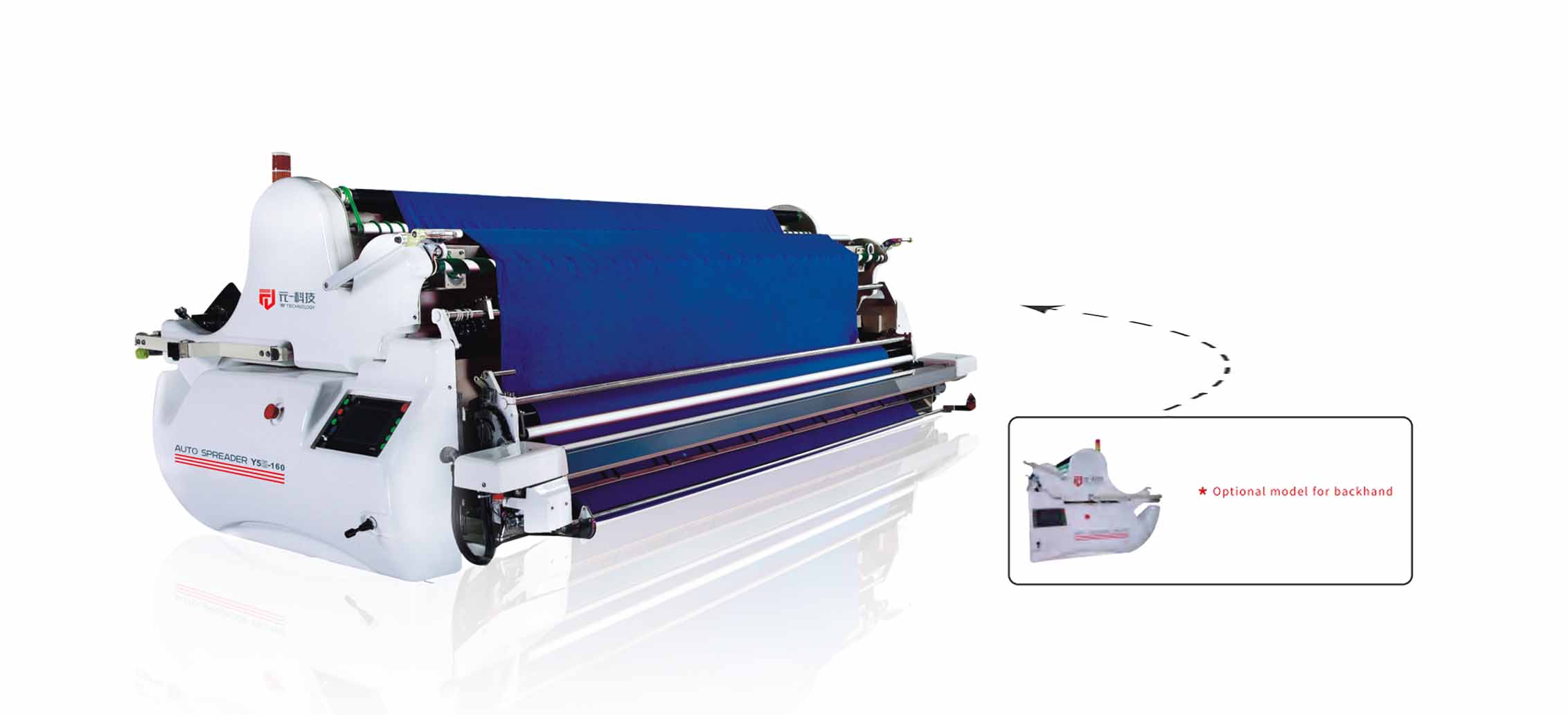

（Optional model for backhand）
working principle
Product parameter
Product configuration
Automatic Edge Shifting Device
Automatic Servo Feeding Interactive Interface
Pressing cloth device
|

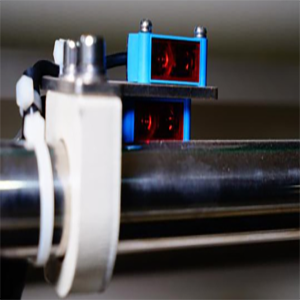

Automatic edge shifting device
Independent invention patent, perfectly solve the curling problem of knitted fabric, realize curling leveling and tension release. According to the different fabrics, it can be equipped with second and third sides |

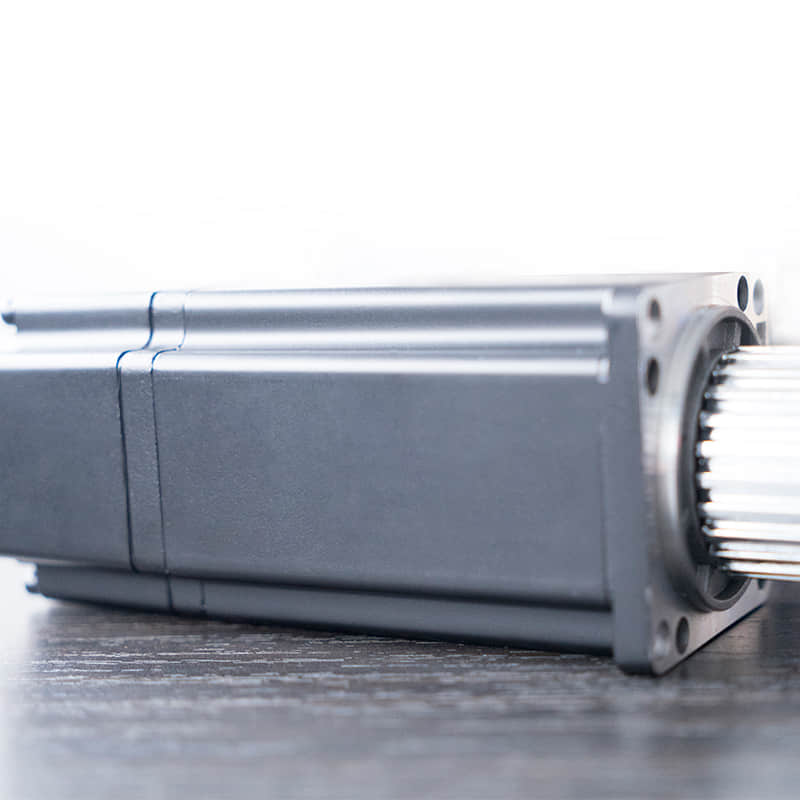

Automatic servo feeding
Servo-automatic follow-up drive transmission device for cloth feeding roller Accurately match the main servo walking Realize tension-free spreading effect The accuracy of the edge is controlled within 5mm |

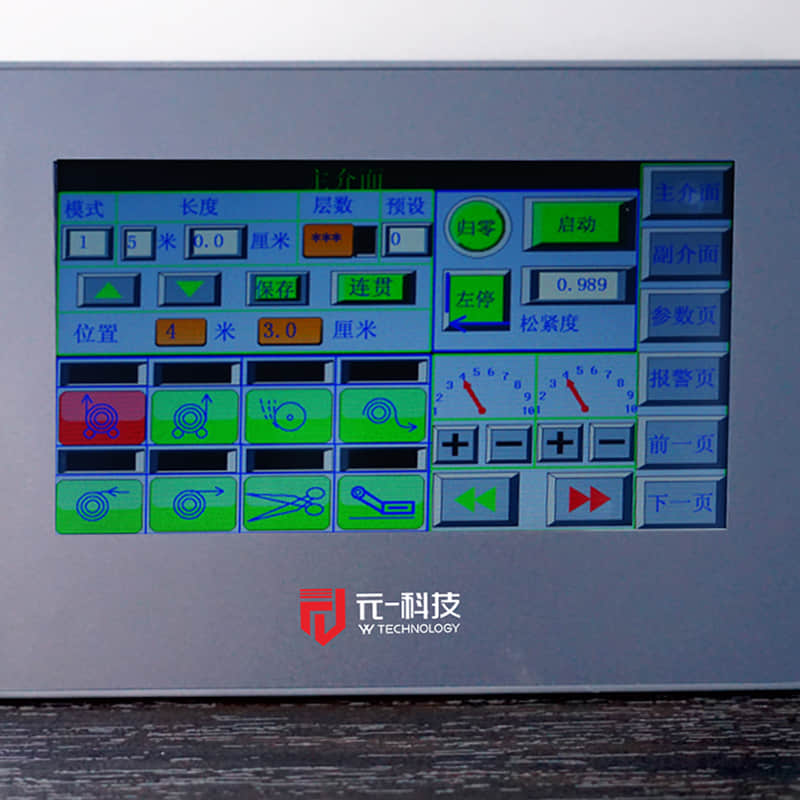

Brand-new operating system,capacitive touch screen technology,same touch as smartphone.
Visible operation,easy to operate;
Refer to different fabrics,can set 20 fabric parameters at the same time.
|

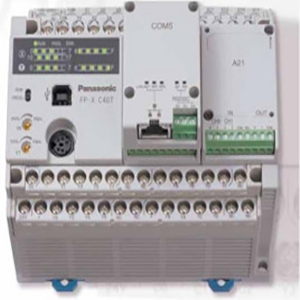

Use the Panasonic PLC control system to control the running speed of the equipment, which is stable and safe.
|

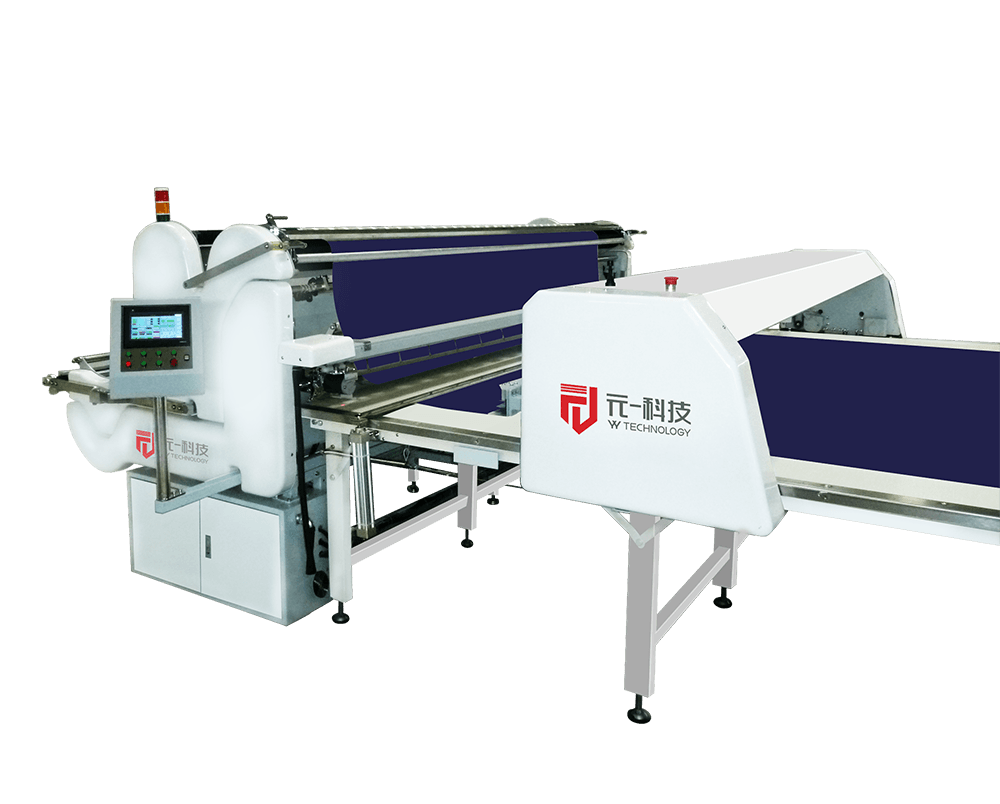

Intelligent cutting machine VS Traditional mode of production
