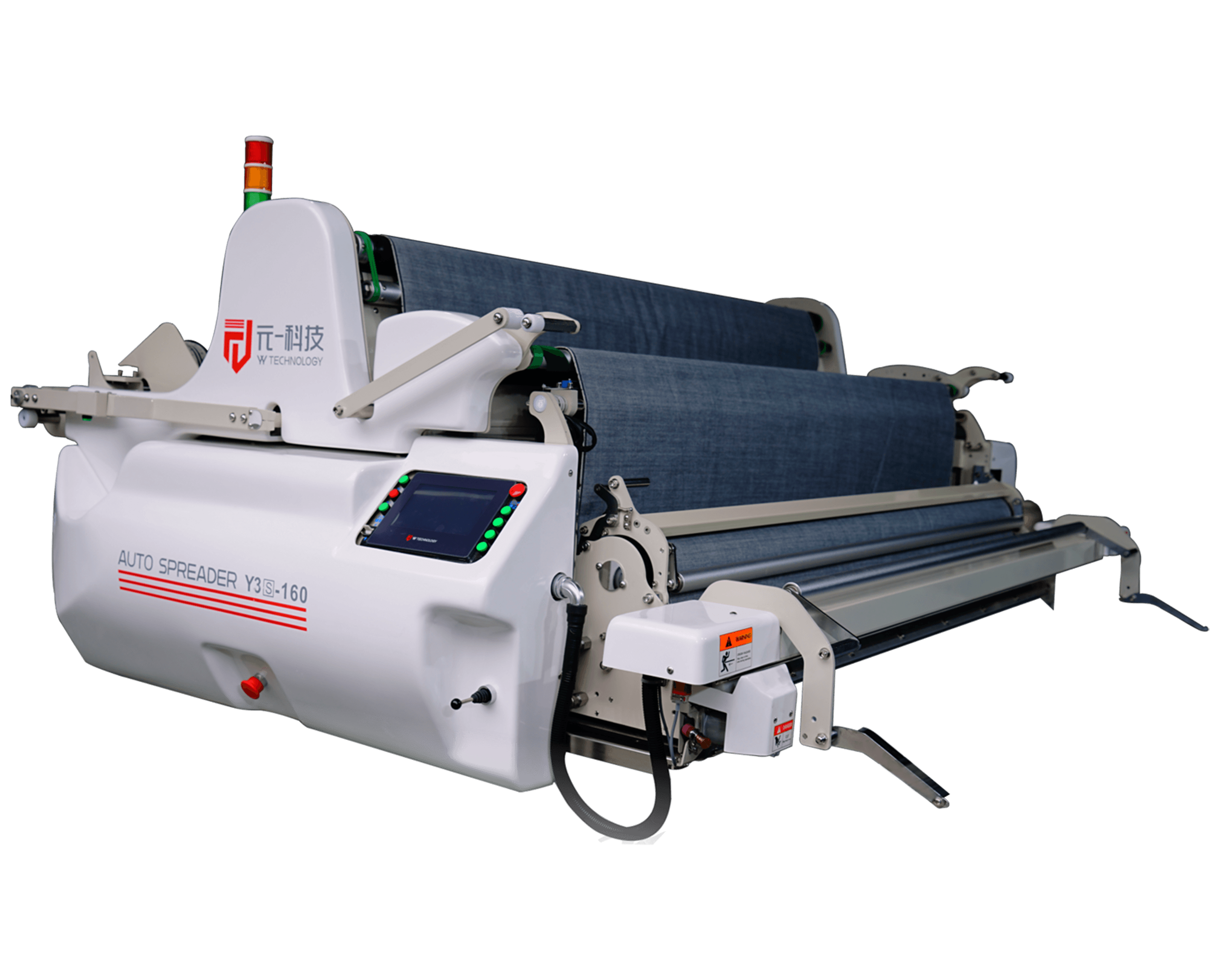

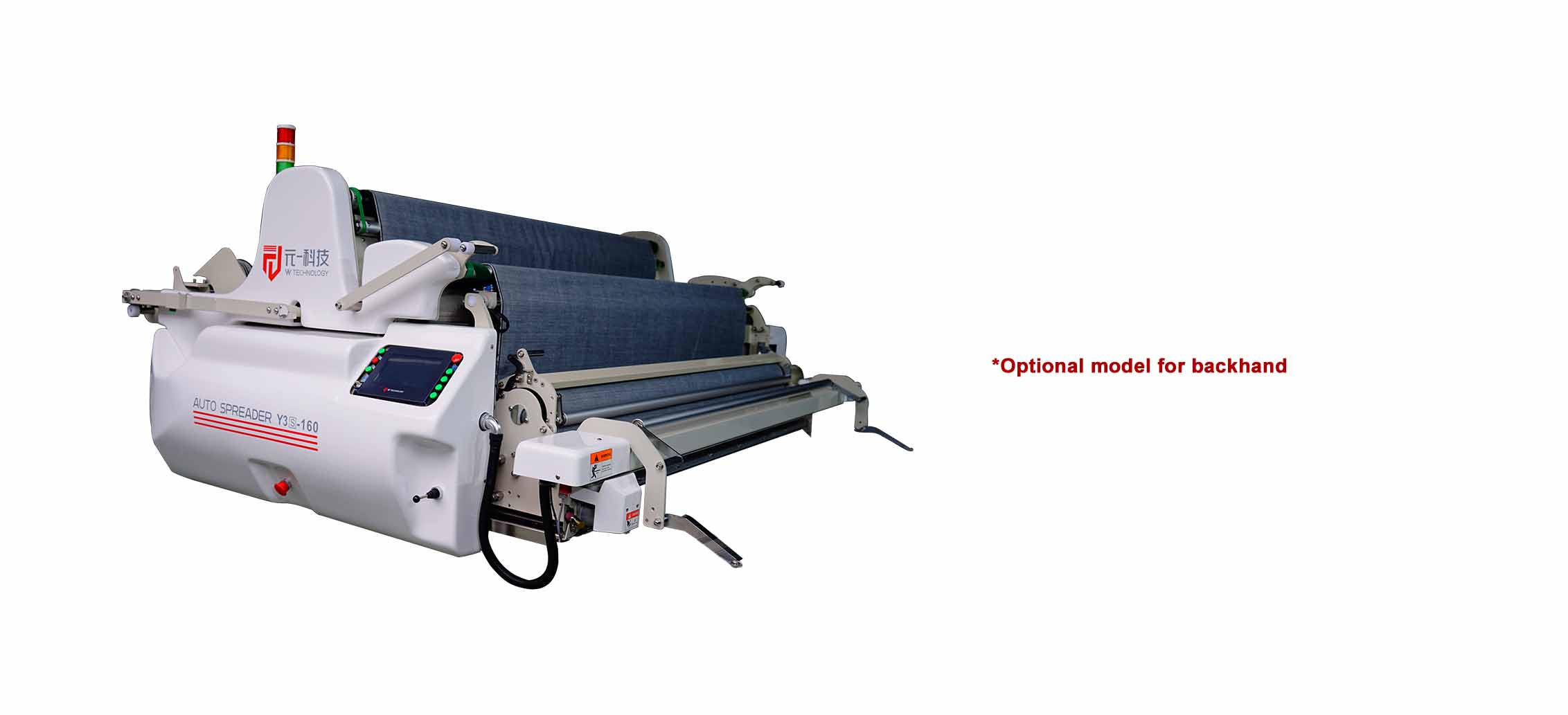

> Auto spreading machine Y3S（Denim,Pant,Shirt,Suit,Luggage,Jacket)
High-efficiency spreader for woven fabrics, with “single-pressure device”,
Easy to achieve single-person duty, efficient and labor-saving.
Product parameter
| Model | Y3S-160 | Y3S-190 |
| Maximum cloth width | 1600mm | 1900mm |
| Diameter of cloth roll（max） | 450mm | |
| Weight of cloth roll（max） | 80kg | |
| Drive speed（max） | 106m/min | |
| Lay height（max） | One-way 230mm/Zigzag 160mm | |
| Power supply | 1P 22V/50Hz 1Kw | |
| Table width | 1830mm | 2130mm |
| Machine dimension（L*W*H mm） | 1900*2300*1250 | 1900*2600*1250 |
Features
Automatic Edge Shifting Device Automatic Servo Feeding Interactive Interface Strong Fabric Compatibility
|
Automatic edge shifting device
Independent invention patent, perfectly solve the curling problem of knitted fabric, realize curling leveling and tension release. According to the different fabrics, it can be equipped with second and third sides |
Automatic servo feeding
Servo-automatic follow-up drive transmission device for cloth feeding roller Accurately match the main servo walking Realize tension-free spreading effect The accuracy of the edge is controlled within 5mm |
Interactive interface
The new operating system, capacitive touch technology, enjoys the same touch as a smartphone Visual operation, easy to use |
Suitable for common woven fabrics, coated linings, trousers, jackets, denim fabrics |
