Auto spreading machine
Home > Product > Auto spreading machine

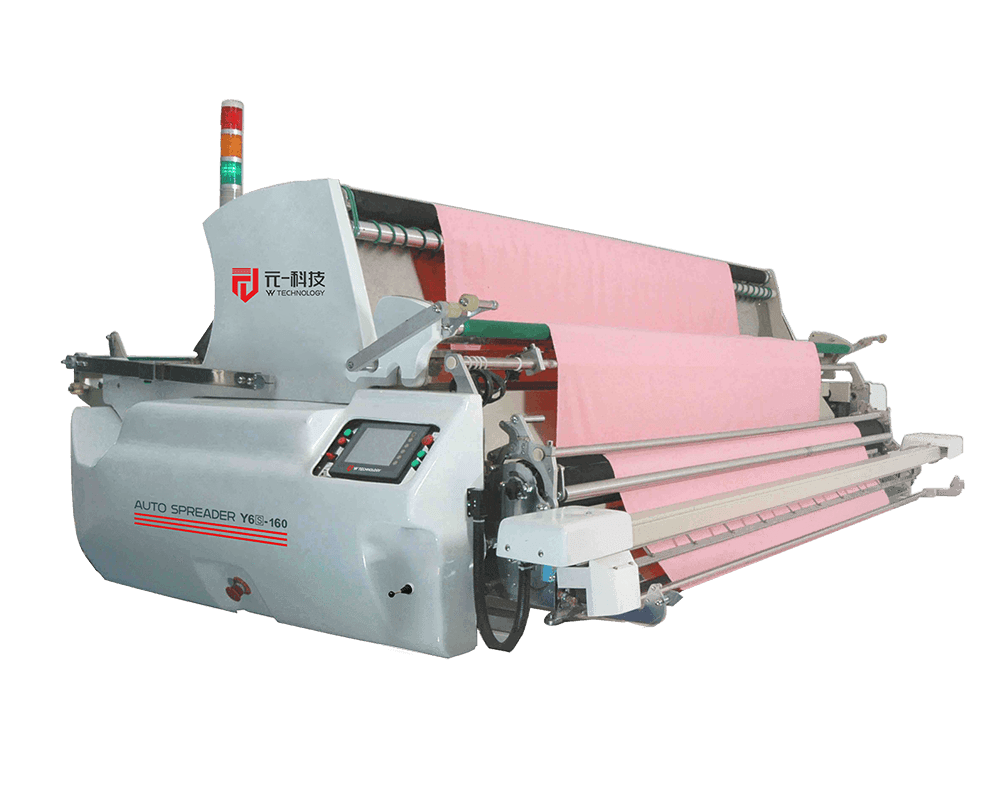

> Auto spreading machine Y6s（T-sirt,Underwear,Kids wear,Sportswear)
Create a dual-use era of knitting and woven fabrics,
which can be used in a wide range of applications.
|
Model |
Y6S-160 Y6S-190 Y6S-210 Y6S-210 Home textile |
|
Maximum cloth width |
1600mm 1900mm 2100mm 2600mm customizable |
|
Diameter of cloth roll（max） |
450mm（maximum customizable 800mm） |
|
Weight of cloth roll（max） |
80kg |
|
Drive speed（max） |
106m/min |
|
Lay height（max） |
One-way 230mm（can be increased to 300mm）/Zigzag 160mm |
|
Power supply |
1P 22V/50Hz 1Kw |
|
Table width |
1830mm 2130mm 2330mm 2830mm Customizable |
|
Machine dimension（L*W*H mm） |
1900*2300*1250 1900*2600*1250 1900*2800*1250 1900*3300*1250 Customizable |
