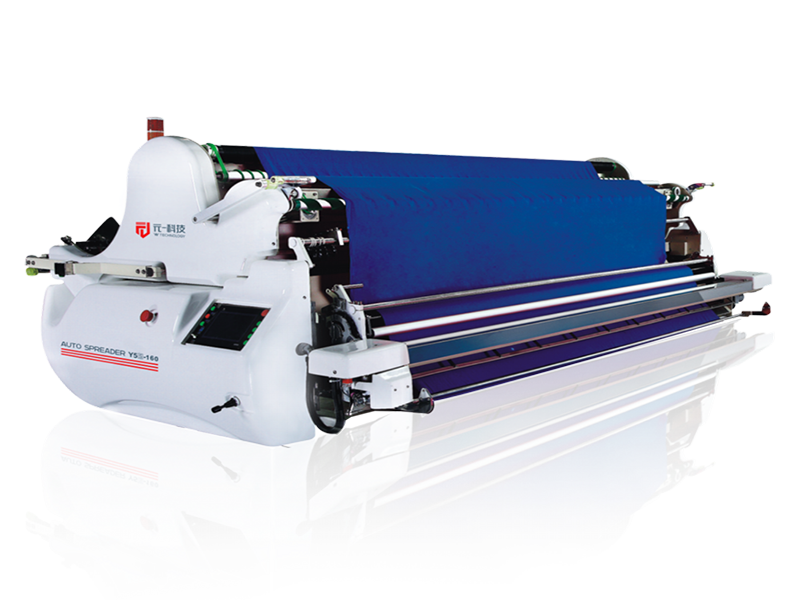

Auto spreading machine
Wide-area fabric automatic spreading application, support customization It is suitable for automatic spreading of various wide fabrics such as home textiles.
Widely used in home textiles, mattresses, curtains, etc.
-

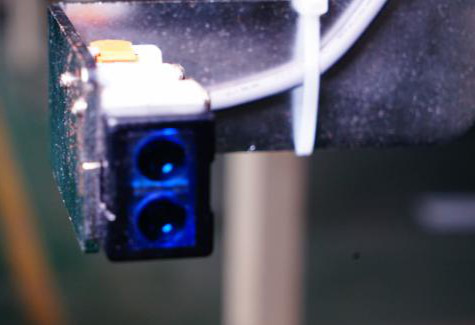

Photoelectric anti-collision device -

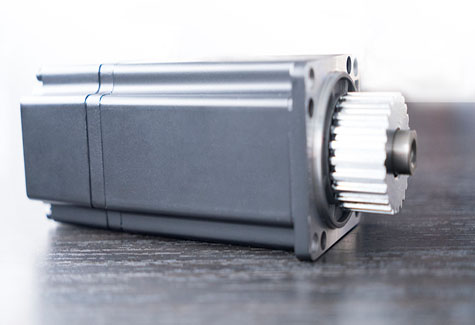

Automatic servo distribution system -

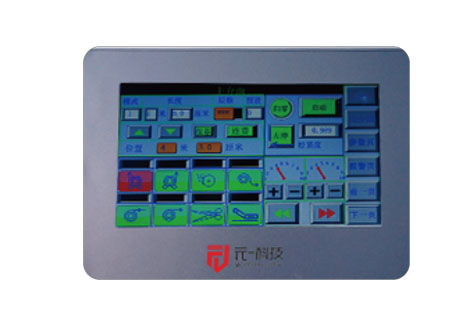

Ineractive interface
Widely used in home textiles, mattresses, curtains, etc.
| Basic parameters | ||||
| Model | Y14-240 | Y14-260 | Y14-280 | Y14-310 |
| Maximum cloth width | 2400mm | 2600mm | 2800mm | 3100mm |
| Diameter of cloth roll（max） | 450mm（Can be customized to 800mm） | |||
| Weight of cloth roll（max） | 80kg（Can be customized to100kg） | |||
| Lay height（max） |
Single pull up to 300mm，Double pull up to 230mm； One-way300mm/Zigzag 230mm |
|||
| Drive speed（max） | 106m/min | |||
| Power supply | 1P220V/50HZ 1kw | |||
| Table width | 2530mm | 2830mm | 3030mm | 3330mm |
| Machine dimension（L*W*H mm） | 3000*1650*950mm | 3300*1650*950mm | 3500*1650*950mm | 3800*1650*950mm |
