Description

High-precision automatic cutting model

1.Equipped with intelligent negative pressure constant system, when passing through the window, the fabric in the cutting window will not move because of the pressure always maintain a stable vacuum state to ensure the cutting accuracy. Greatly improve equipment stability, more energy saving and environmental protection.

2.Intelligent cutting software, which can preferentially select the cutting pieces, such as small piece priority, optimized marker drawing, can easily control the cutting precision Using ordinary motor, strong torque, precise punching, and the size of the pinhole can be changed according to actual needs.

Standard "Blade Intelligence cutter dynamic compensation" technology,

Perfect precision cutting at a height of 90mm.

V9S-suitable for:denim/oxfor/jeans ,knit,knitted fabric,T-shirt,sportswear,underwear,sleep wear,double woolen,Non-woven fabric

Design idea

Micro-oil design, efficient cutting head with ‘knife intelligence’ technology

Touch and Icon Buttons,Human&Mc Interaction System

Cutting Assist System of customized bristle bed &large suction bed

First class electrical system

Product parameter

Features

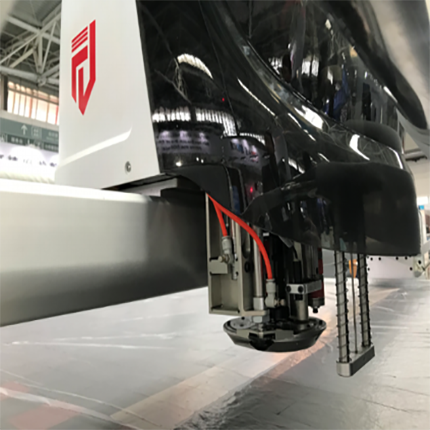

MC Appearance High-efficiency Cutting System Max cutting height 90mm

Appearance：outer cover easy to disassembly , easy to do maintenance.

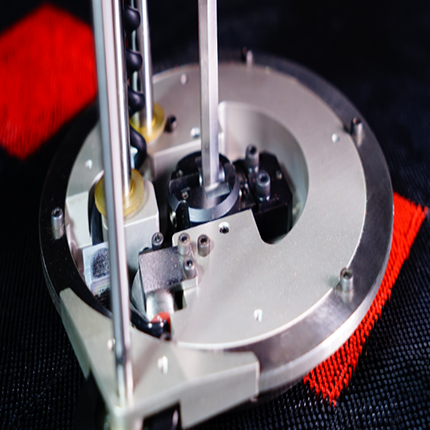

Head belt：belt type drive rotates ,high precise and stable control, easy to replace and do maintenance ,low cost.

Highest speed—max 6000rpm，improve cutting efficiency greatly；

The first dynamic sharpening technology to sharpen

while moving ,increase efficiency；

Micro-oil design,reduce oil stains.

Top technology，Combination with “Blade Intelligent”，

Ensure cutting quality and also improve cutting efficiency.

One-piece Structure Conveyor with vacuum adsorption technology Punching Device

Designed with an integrated frame structure of high-quality steel,Using a large processing center imported from Europe,All mounting datums are clamped at one time.Ensure that all mounting points are accurate and stable.

Equipped with intelligent negative pressure constant system,

Intelligent compensation vacuum pressure,uniform and stable；

Fabric not easy to move,improve cutting quality.

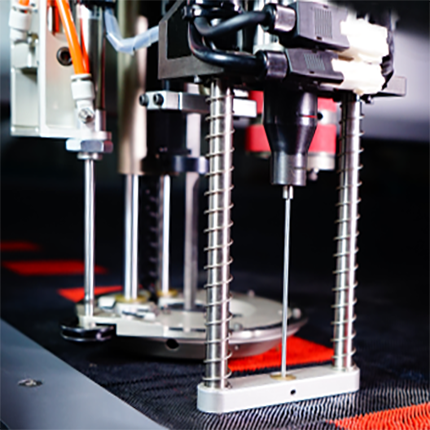

Using servo motor, strong torque; precise punching, and the size of the pinhole can be changed according to actual need.
