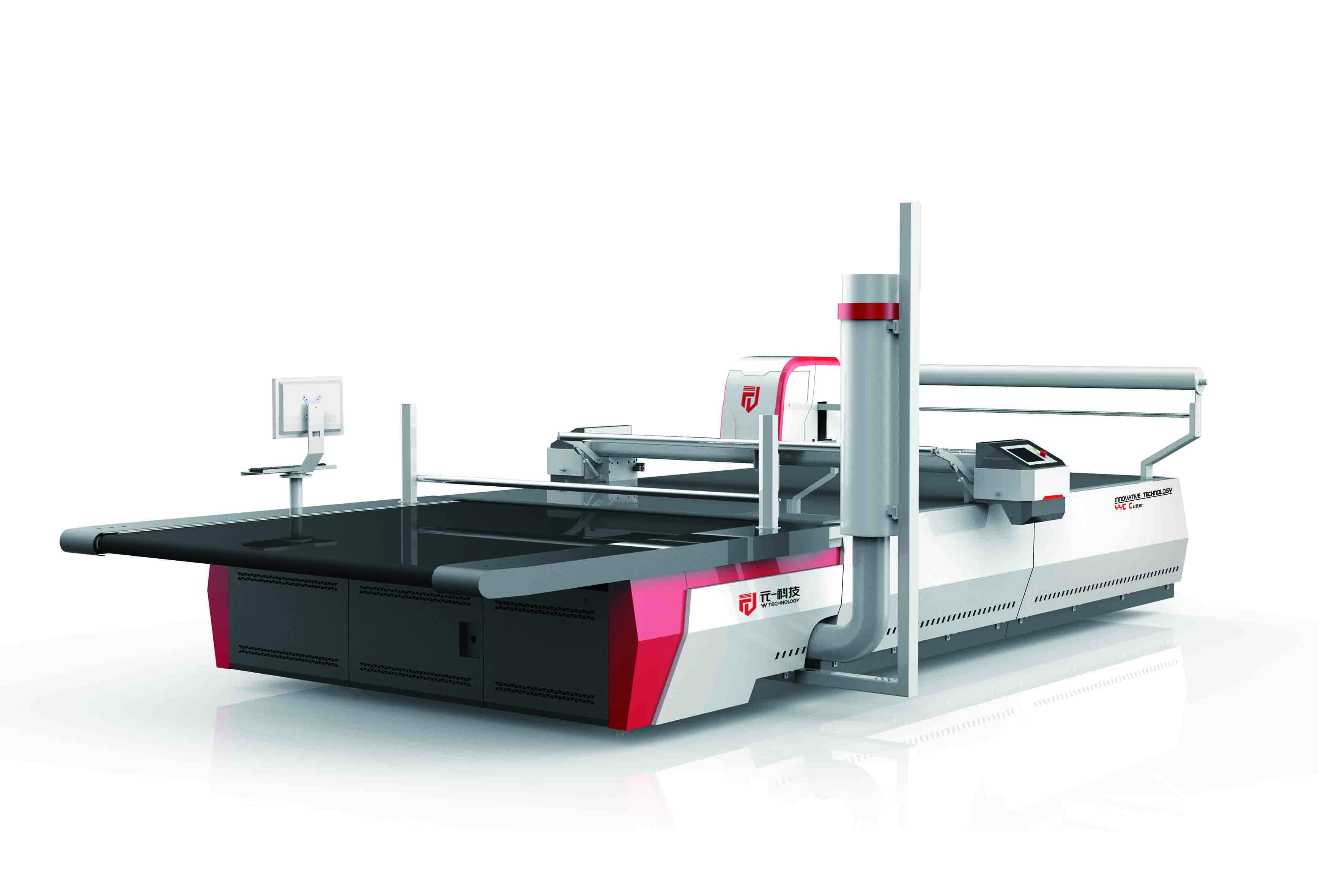

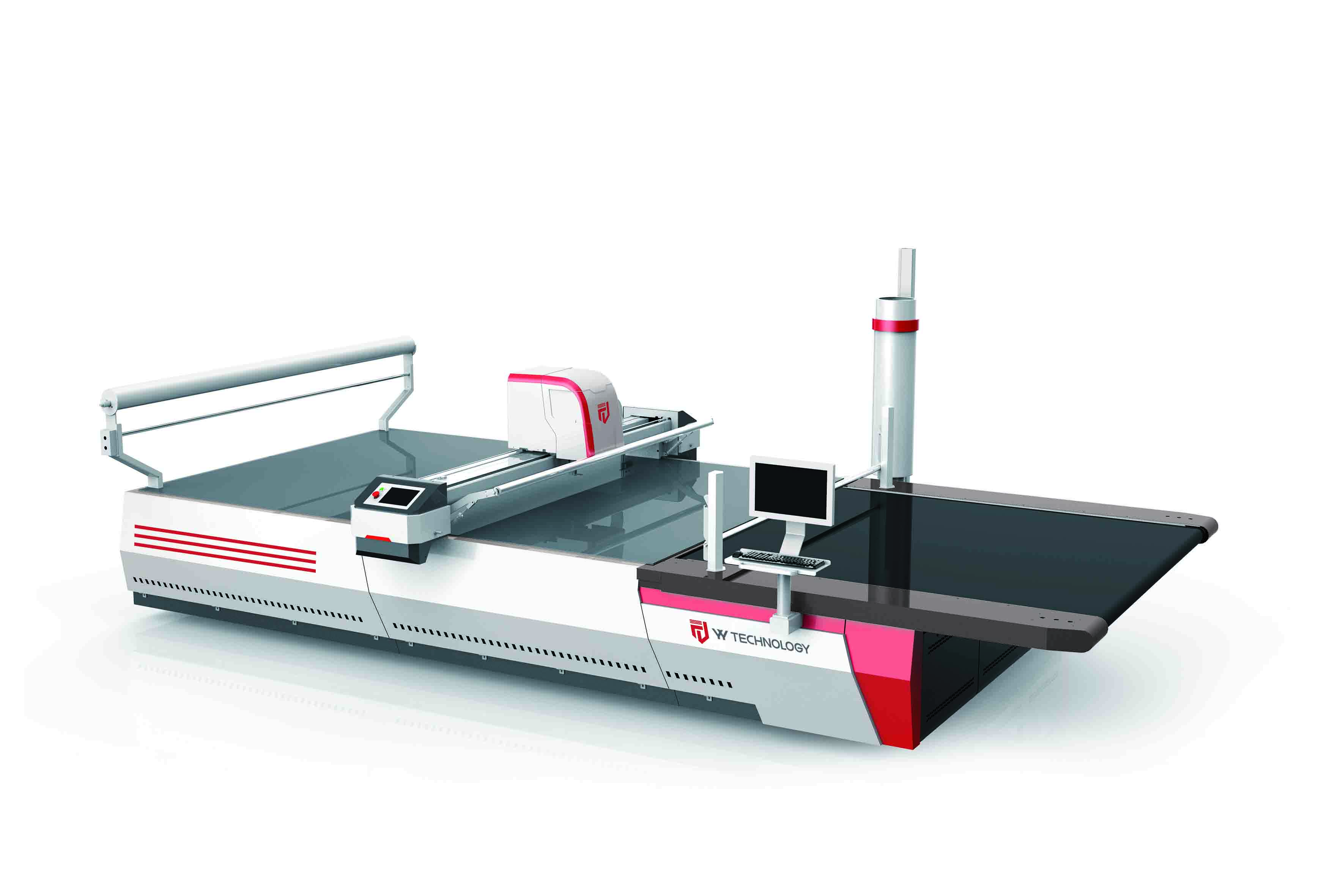

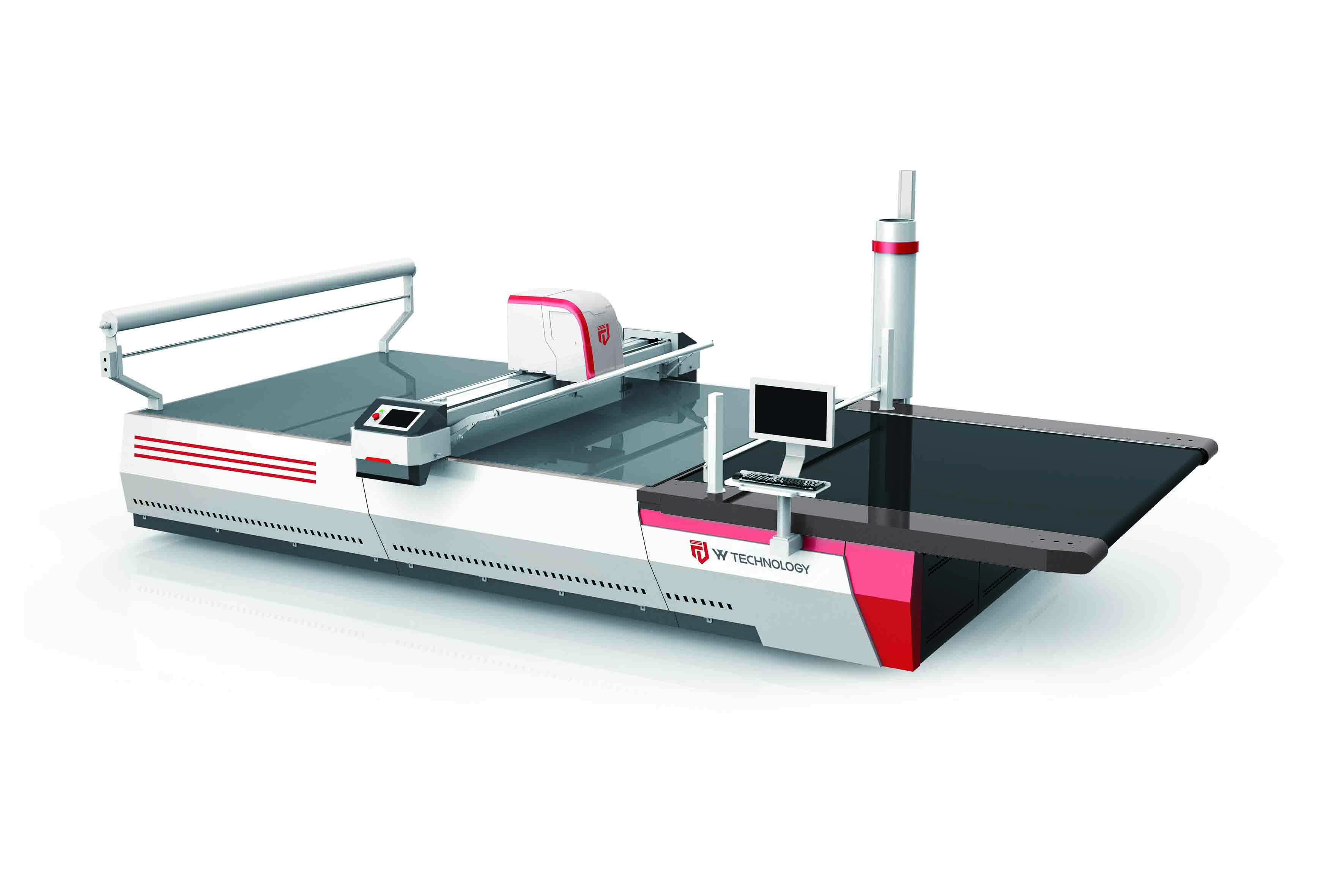

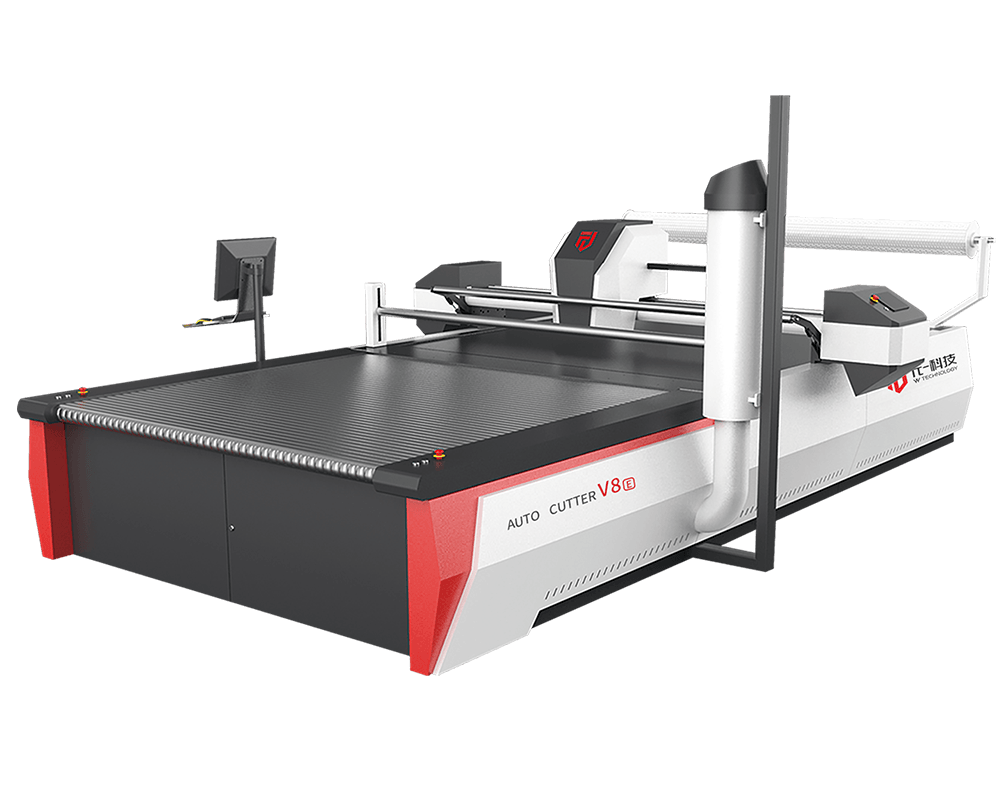

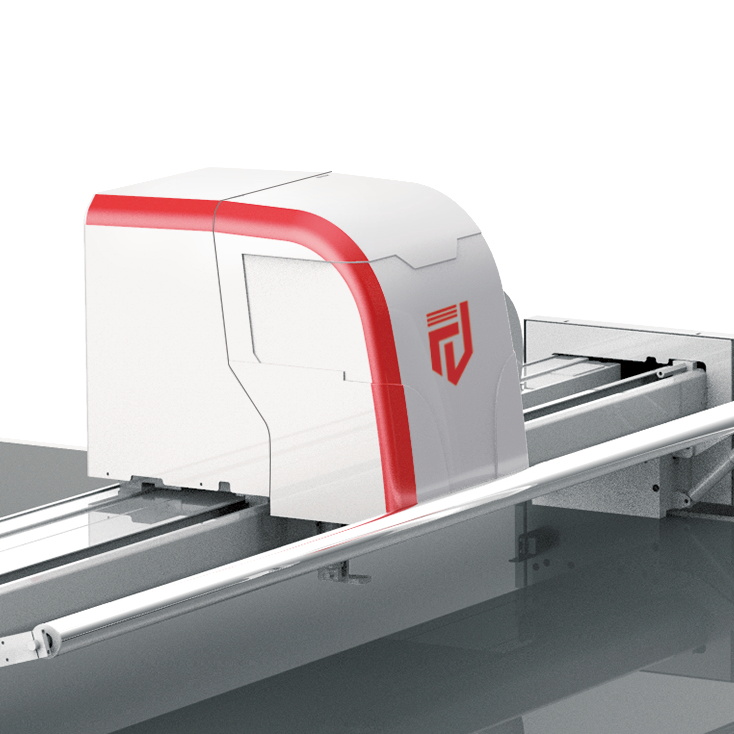

> Auto cutting machine V8E（T-sirt,Underwear,Kids wear,Sportswear,Jacket,Luggage,）
1.Equipped with intelligent negative pressure constant system, when passing through the window, the fabric in the cutting window will not move because of the pressure always maintain a stable vacuum state to ensure the cutting accuracy. Greatly improve equipment stability, more energy saving and environmental protection.
2.Intelligent cutting software, which can preferentially select the cutting pieces, such as small piece priority, optimized marker drawing, can easily control the cutting precision Using ordinary motor, strong torque, precise punching, and the size of the pinhole can be changed according to actual needs.
Pursuit of ultimate cutting quality, combined with durable
and stable hardware performance,The price is preferred.
V8E-suitable for：knitted fabric,knit ,T-shirt,coted fabric,jacket ,double wear wool ;double woolen product,sleep wear ,Non-woven fabric
V8E-suitable for：knitted fabric,knit ,T-shirt,coted fabric,jacket ,double wear wool ;double woolen product,sleep wear ,Non-woven fabric
Product parameter
|
Working window width |
1.6m/2.0m/2.2m |
|
Cutting window length |
1.8m/2.0m/2.5m/2.8m |
|
Sorting conveyor belt length |
2.0m/2.5m |
|
Max cutting height |
80 mm after vacuum compression |
|
Max speed |
100m/min |
|
Max acceleration |
1.5g |
|
Maximum speed |
4500r |
|
Average yield（depending on the situation） |
12m/min |
|
Maximum cutter head acceleration |
2.5m/s² |
|
Cutting weight |
3000kg |
|
Cutter height |
2169mm |
|
Blade technology intelligence |
/ |
Features

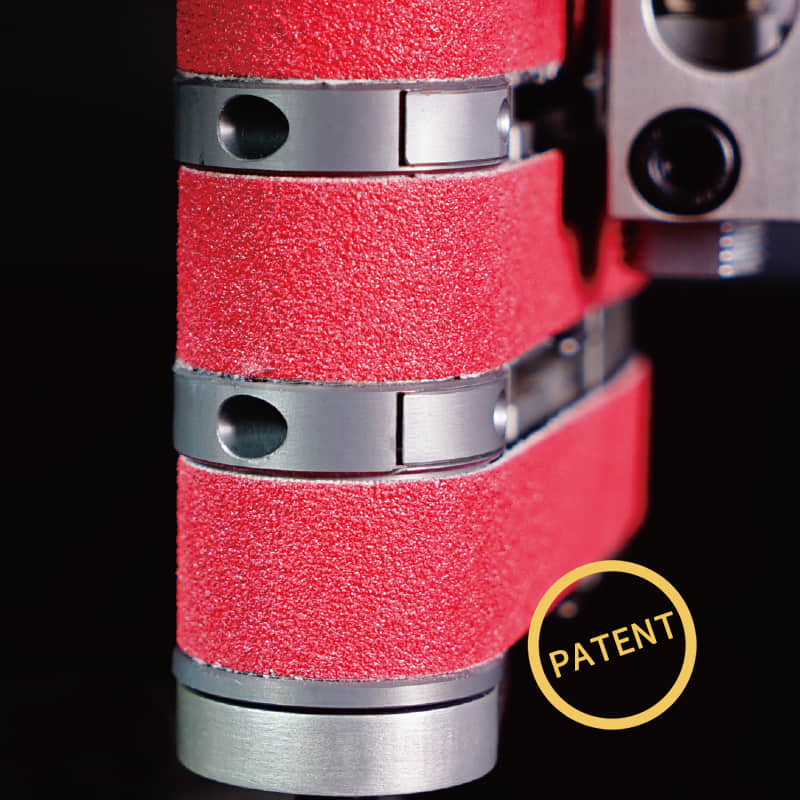

Intelligent Blade Grinding System High-efficiency Cutting System Punching Device System Integrated Cavity Design
|
Will not cause jagged damage to the cutter Extend blade use time and reduce costs Easy to disassemble and replace, easy to learn and understand Different specifications of sandbags can be selected according to different fabrics, with a wider application range Sharpening efficiency is significantly improved compared with the non-abrasive belt sharpening structure Can be set to lift and sharpen the knife at the corner |
Up to 4500 revolutions, greatly improving cutting efficiency Use micro-oil design to reduce oil pollution The compact cutting head design is more beautiful and easy to maintain |

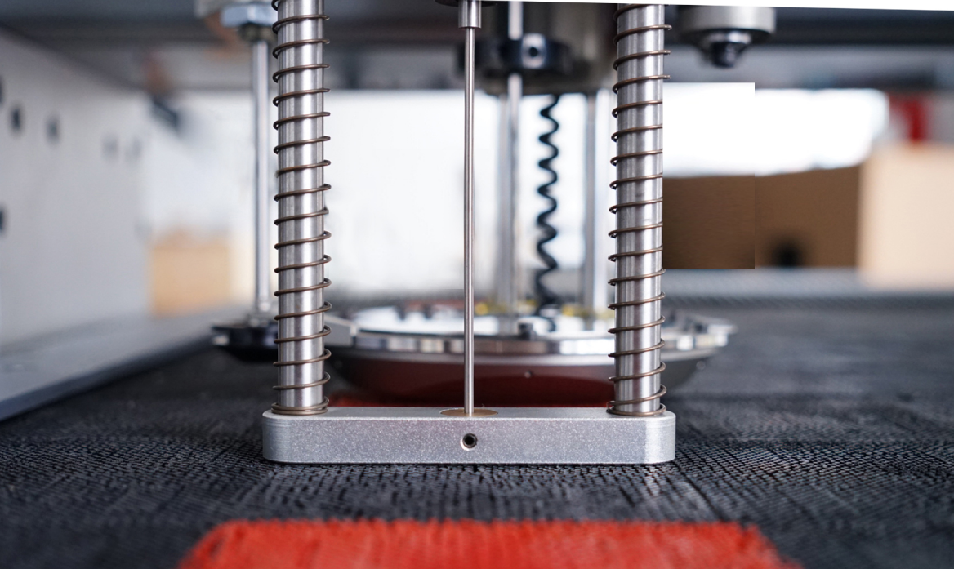

Using ordinary motor, strong torque Can complete the punching operation quickly and accurately Provide extremely high stability and strong adaptability |
The one-piece cavity can bear the maximum negative pressure of -23MPA to ensure the stability of the cut piece The stable bed structure can offset the reaction force when the cutting head moves to the greatest extent, and improve the cutting precision Easy to install, easy to adjust and more stable |
More show
COTTON DENIM COTTON BRUSH CLOTH PROTECTIVE SUIT COMPOSITE COTTON DOWN JACKET FLANNEL
COTTON DENIM COTTON BRUSH CLOTH PROTECTIVE SUIT COMPOSITE COTTON DOWN JACKET FLANNEL
Application industry·Sportwear ·Furnishing ·Luggage ·Shirts
