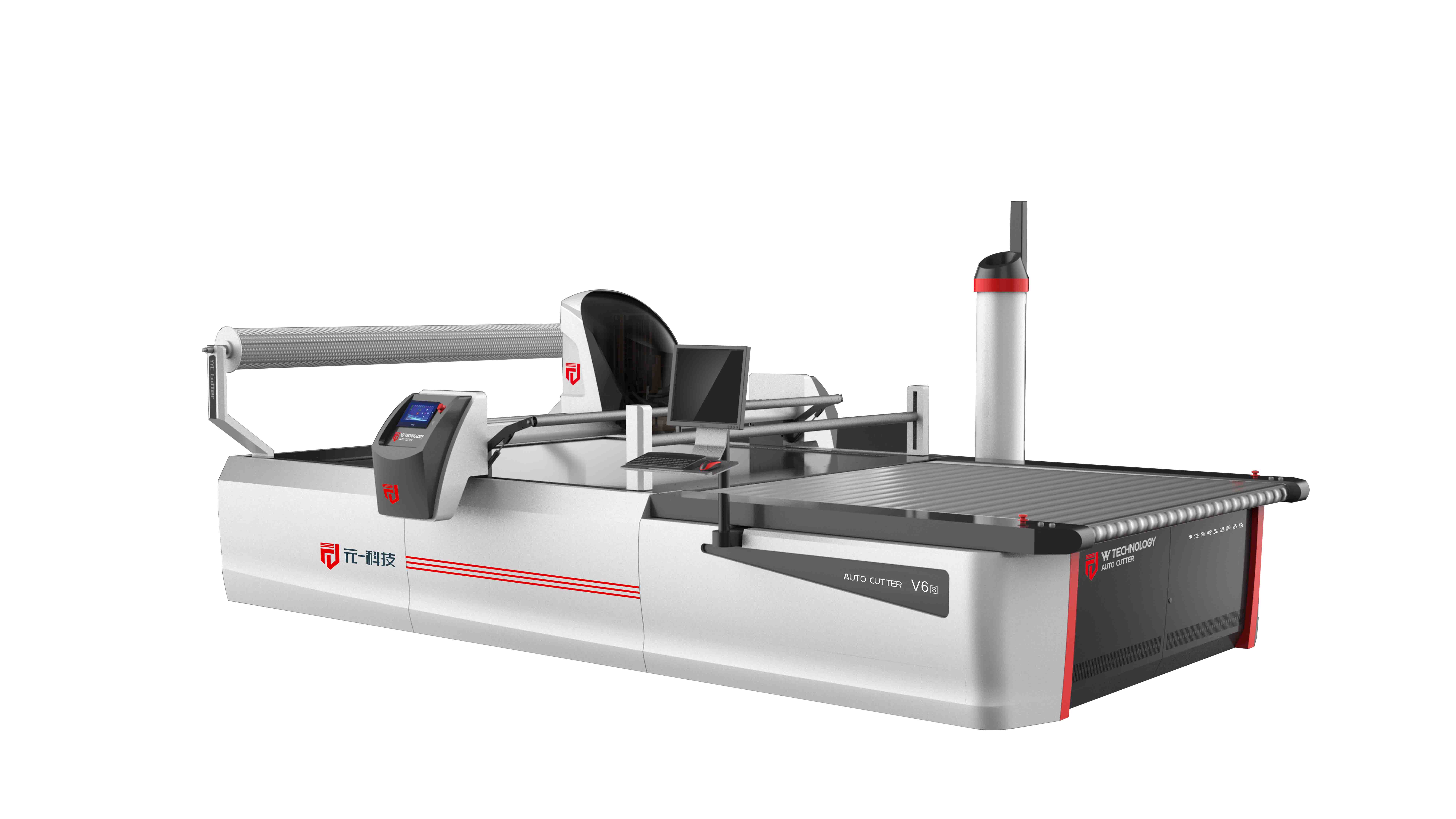

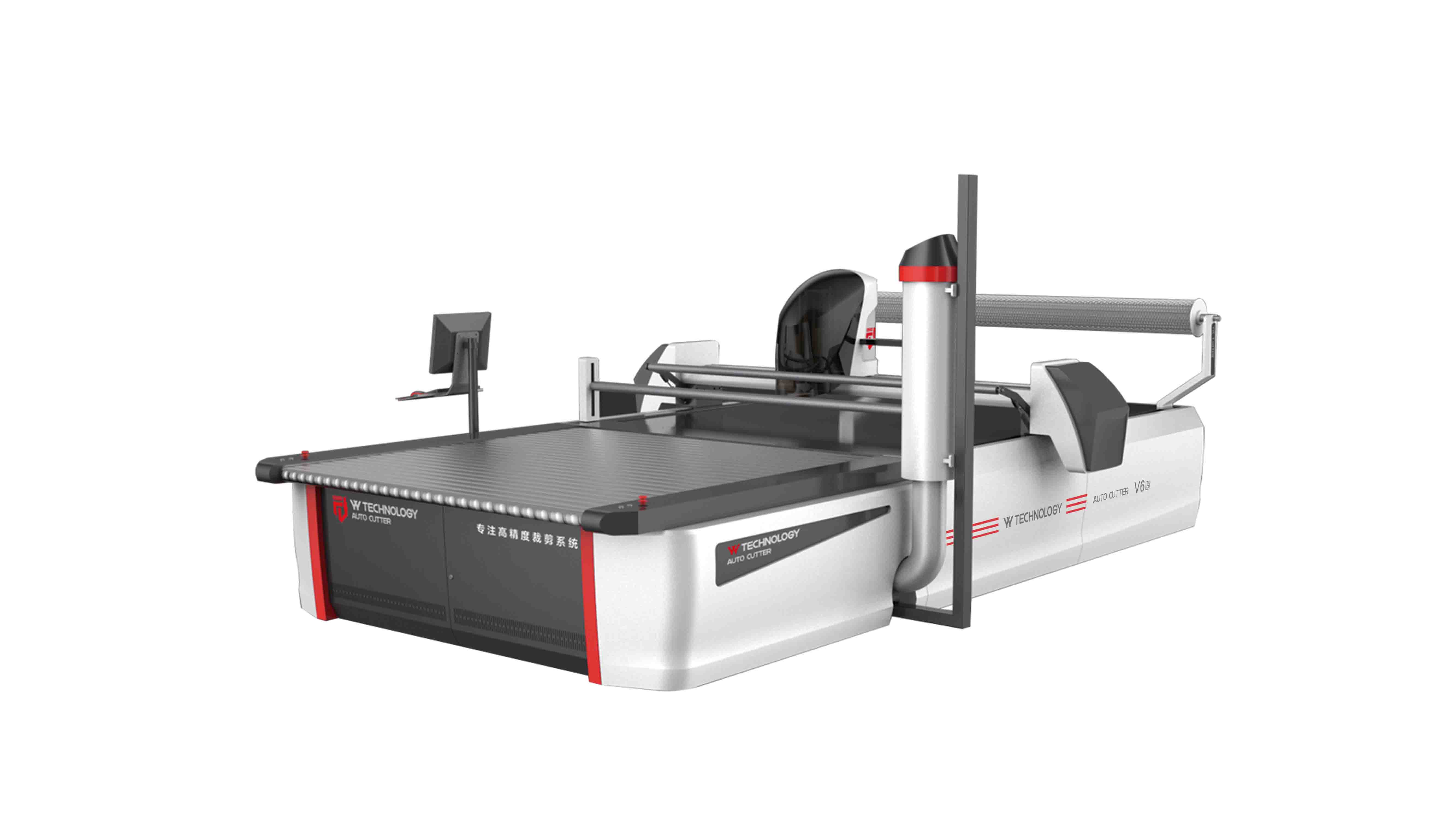

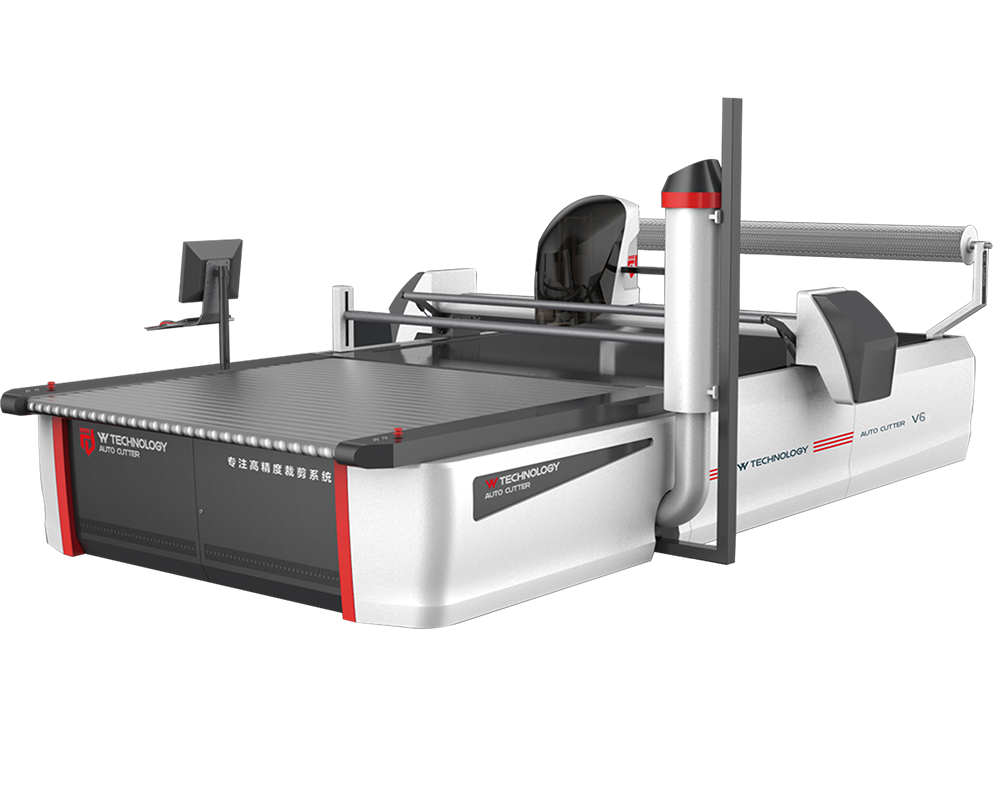

> Auto cutting machine V6（Denim,Pant,Shirt,Suit,Luggage,Car seat）
1.Equipped with intelligent negative pressure constant system, when passing through the window, the fabric in the cutting window will not move because of the pressure always maintain a stable vacuum state to ensure the cutting accuracy. Greatly improve equipment stability, more energy saving and environmental protection.
2.Intelligent cutting software, which can preferentially select the cutting pieces, such as small piece priority, optimized marker drawing, can easily control the cutting precision Using ordinary motor, strong torque, precise punching, and the size of the pinhole can be changed according to actual needs.
High-end multi-layer cutting machine for medium and large batches,
regular fabric, high-strength cutting operation for composite materials ,
optional "Knife Smart" kit.
V6S-suitable for：woven fabric,trouser,pants,trousers,sportswear,suit,fashion wear,inner fabric ,inner wear,outdoor furniture，PVC,seat,bag,medical products,outdoor furniture
Product parameter
|
Working window width |
1.6m/2.0m/2.2m |
|
Cutting window length |
1.8m/2.0m/2.5m/2.8m |
|
Sorting conveyor belt length |
2.0m/2.5m |
|
Max cutting height |
60 mm after vacuum compression |
|
Max speed |
100m/min |
|
Max acceleration |
1.5g |
|
Maximum speed |
6000r |
|
Average yield（depending on the situation） |
12m/min |
|
Maximum cutter head acceleration |
2.5m/s² |
|
Cutting weight |
4300kg |
|
Cutter height |
2169mm |
|
Blade technology intelligence |
Optional |
Blade Technology Intelligence High-efficiency Cutting System Intelligent Blade Grinding System
|

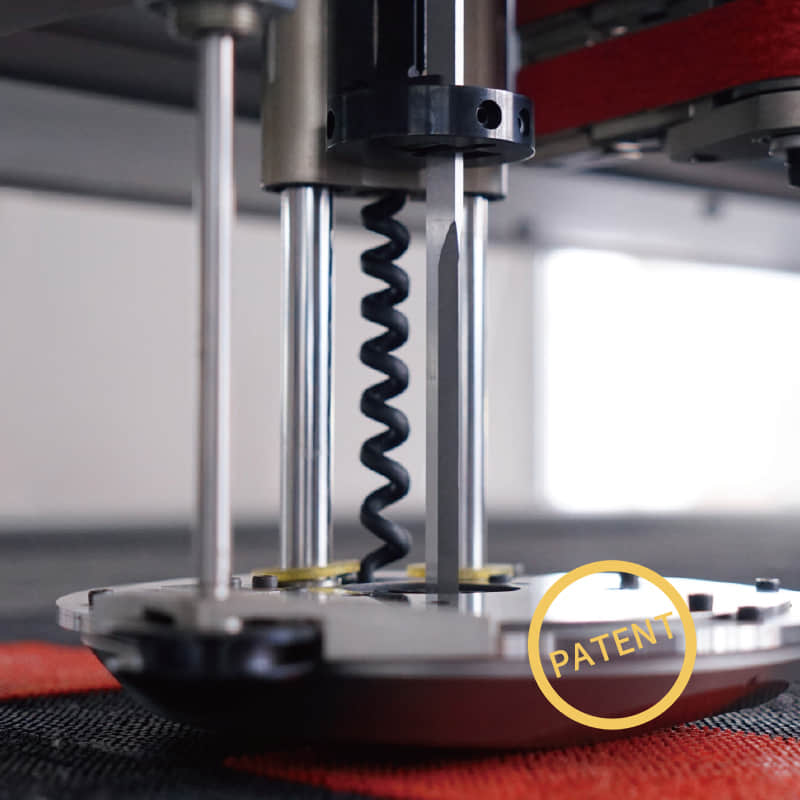

Comparable to international high-end cutter BLCEK THCH Equipped with micron-level intelligent sensing device and intelligent processing system Dynamic compensation and correction of blade deformation in cutting operations Greatly improve the error of the upper and lower layers of multi-layer pieces Realize high-precision intelligent cutting |

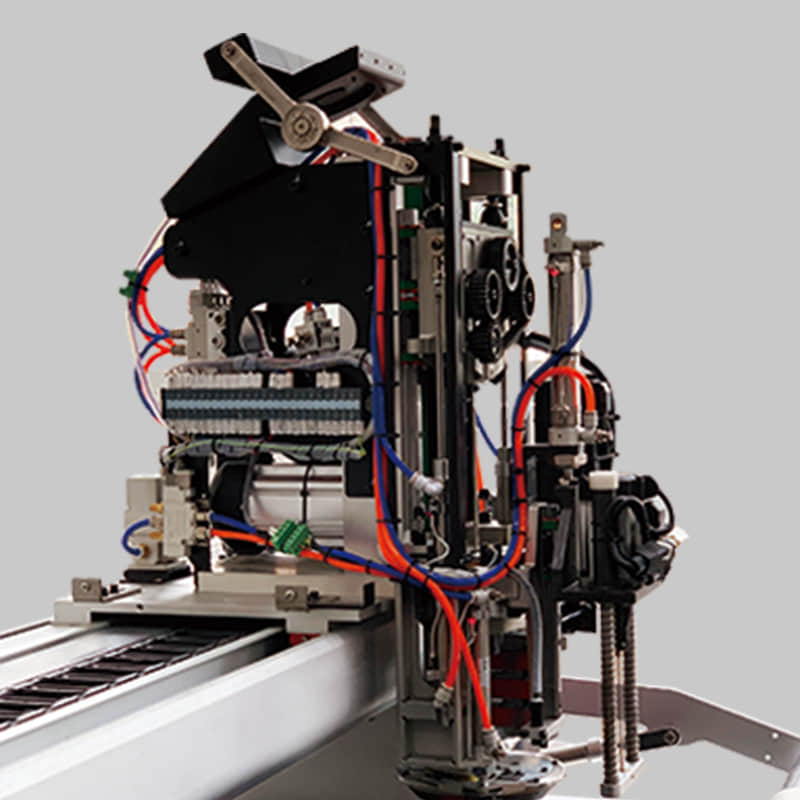

Up to 6000 revolutions Can be cut up to 60mm (after vacuum compression) Greatly improve cutting efficiency Use micro-oil design to reduce oil pollution Compact cutting head design, more beautiful and easy to maintain |
Will not cause jagged damage to the cutter Extend blade use time and reduce costs Easy to disassemble and replace, easy to learn and understand Different specifications of sandbags can be selected according to different fabrics, with a wider application range Sharpening efficiency is significantly improved compared with the non-abrasive belt sharpening structure Can be set to lift and sharpen the knife at the corner |
More show
COTTON DENIM COTTON BRUSH CLOTH PROTECTIVE SUIT COMPOSITE COTTON DOWN JACKET FLANNEL
Application industry·Apparel ·Furnishing ·Automotive ·Accessories
AUTOMOTIVE INTERIOR LUGGAGE AND BAGS DENIM FABRIC PROTECTIVE SUIT SUIT
